SMD TYPE CAPACITOR NETWORK
|
|
General purpose dielectric material
Capacitance range 1000pF to 22µF
Voltage 10 to 100V
Tolerance ±1% to ±20%
Dielectric material available in NPO,X7R,X5R and X7T
Operating temperature -55° C to 150°C
Insulation resistance 10000 Mohm
Plastic case with standing high temperature.
Available 4 to 12pins
Available at 1206,0805,0603 and 0402 size
|
|
|

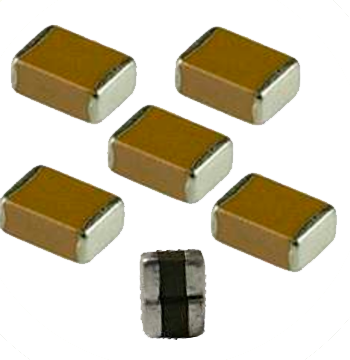

SMD VERTICALLY DOUBLE STACKED CAPACITOR
|
|
Main application: Resonant circuit for plug in charging system
Smooth and decoupling industrial equipment
High capacitance enabled by stacked design and low ESR
General Type MLCCs
Capacitance range 0.1µF to 22µF
Tolerance 10% to 20%
Dielectric material available in NPO, X7R ,X5R and X7T
Operating temperature -55°C to 125°C
Available at 1206, 0805, 0603 and 0402 size
|
|
|

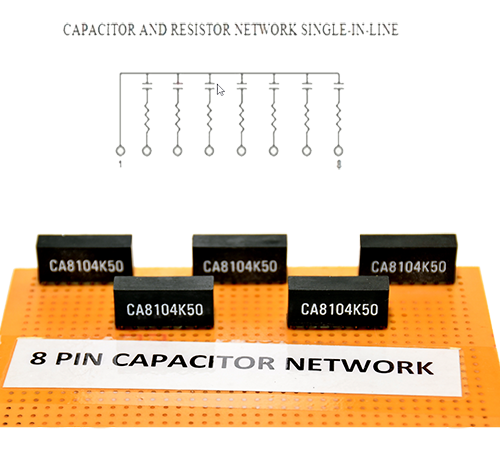

SMD CAPACITOR AND RESISTOR NETWORK
|
|
Resistor and capacitor in single high profile SIP package
Available 4 to 12 pins used resistor and capacitor
Capacitance range 1000pF to 22µF
Tolerance 2% to 20% for capacitance
Voltage 10 to 100V
Resistor value 10 ohm to 10 Mohm
Tolerance 1% to 10% for resistance
Wattage 0.1 to 0.25 watts
Available at 0805 and 1206 size
Flammability UL 94V-0
High stability & reliability.
|
|
|

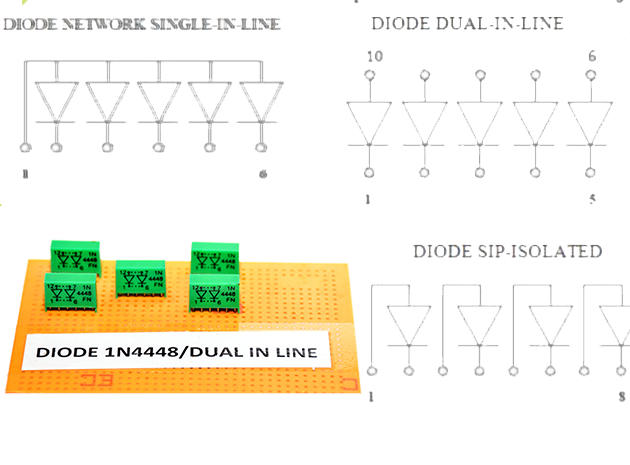

LEADED TYPE DIODE NETWORKS
|
|
Available in 4 to 12 pin
Using silicon diode, zener diode, and rectifier diode
Maximum power dissipation 500mW to 2W
Operating temperature -55°C to 200°C
Available Single-in-line, isolated and dual-in-lines schematic
Epoxy UL 94V-0 rate flame retardant
Axial leads 100% tin coated, (lead-free)
Available diode resistor and diode capacitor network
|
|
|

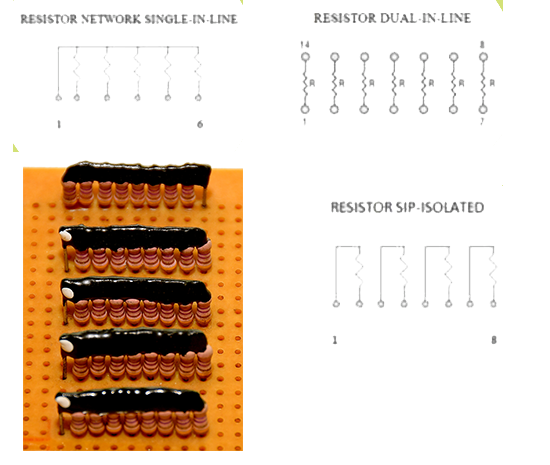

LEADED TYPE RESISTOR NETWORK
|
|
Resistance range 10 ohm to 1000 Mohm
Power rating 0.1 to 0.25 watts
Tolerance 0.5 to 20%
Operating temperature -40°C to 150°C
Temperature coefficient ±100PPM/C
Maximum operating voltage 200V
Available Single-in-line, isolated and dual-in-line schematic
Available 4 to 12 pins
High efficiency.
lead-free
|
|
